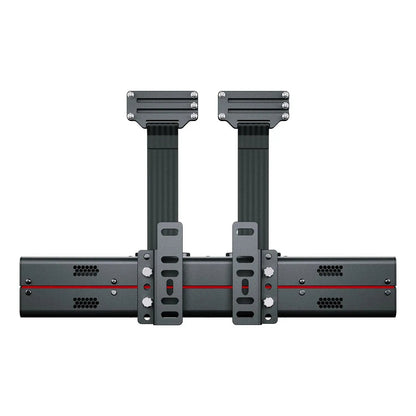

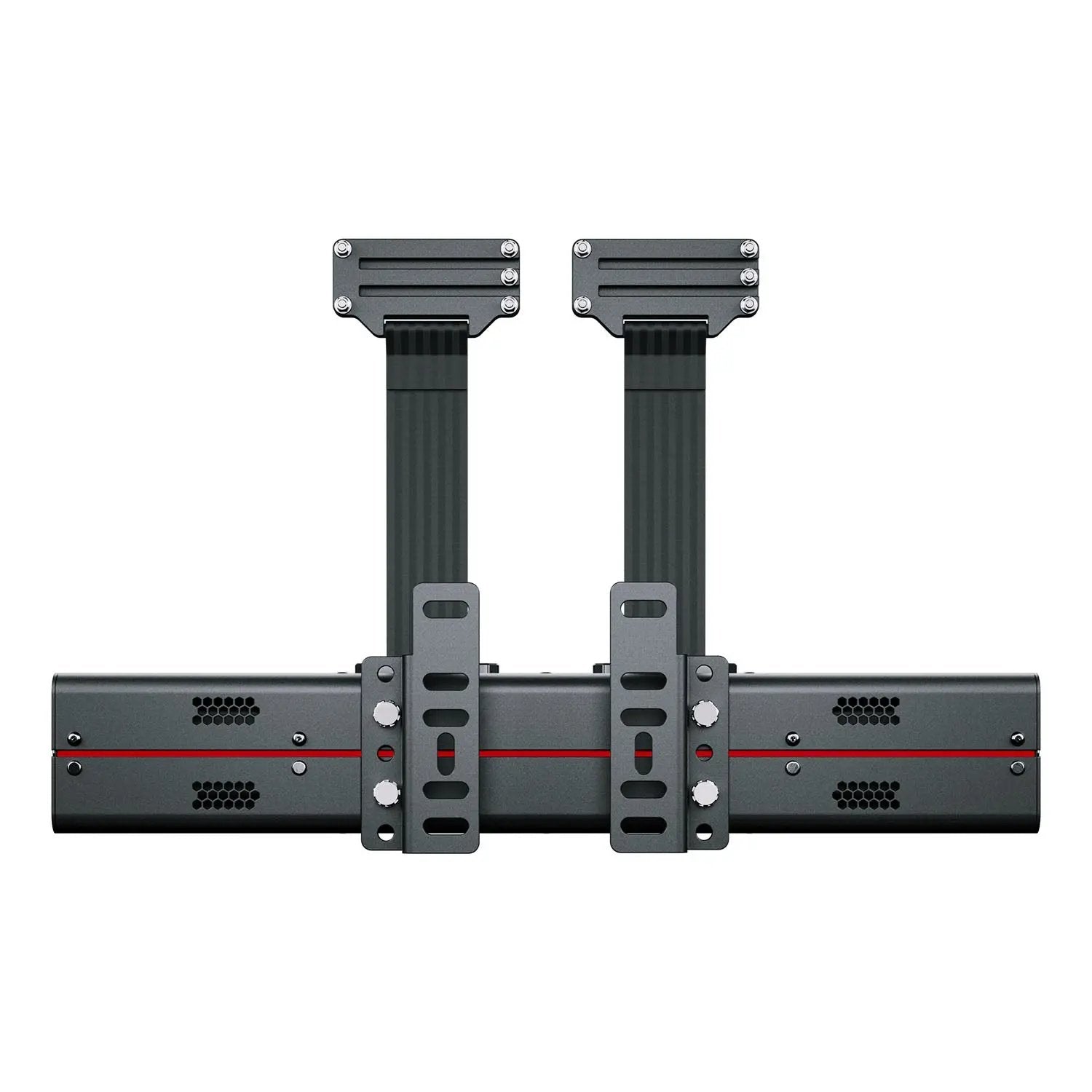

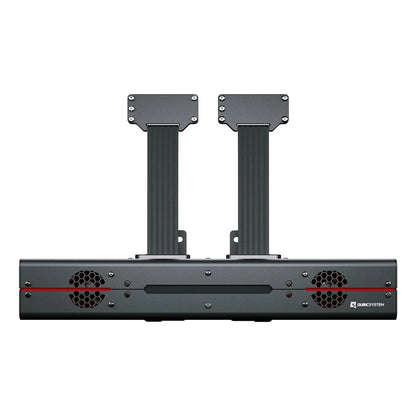

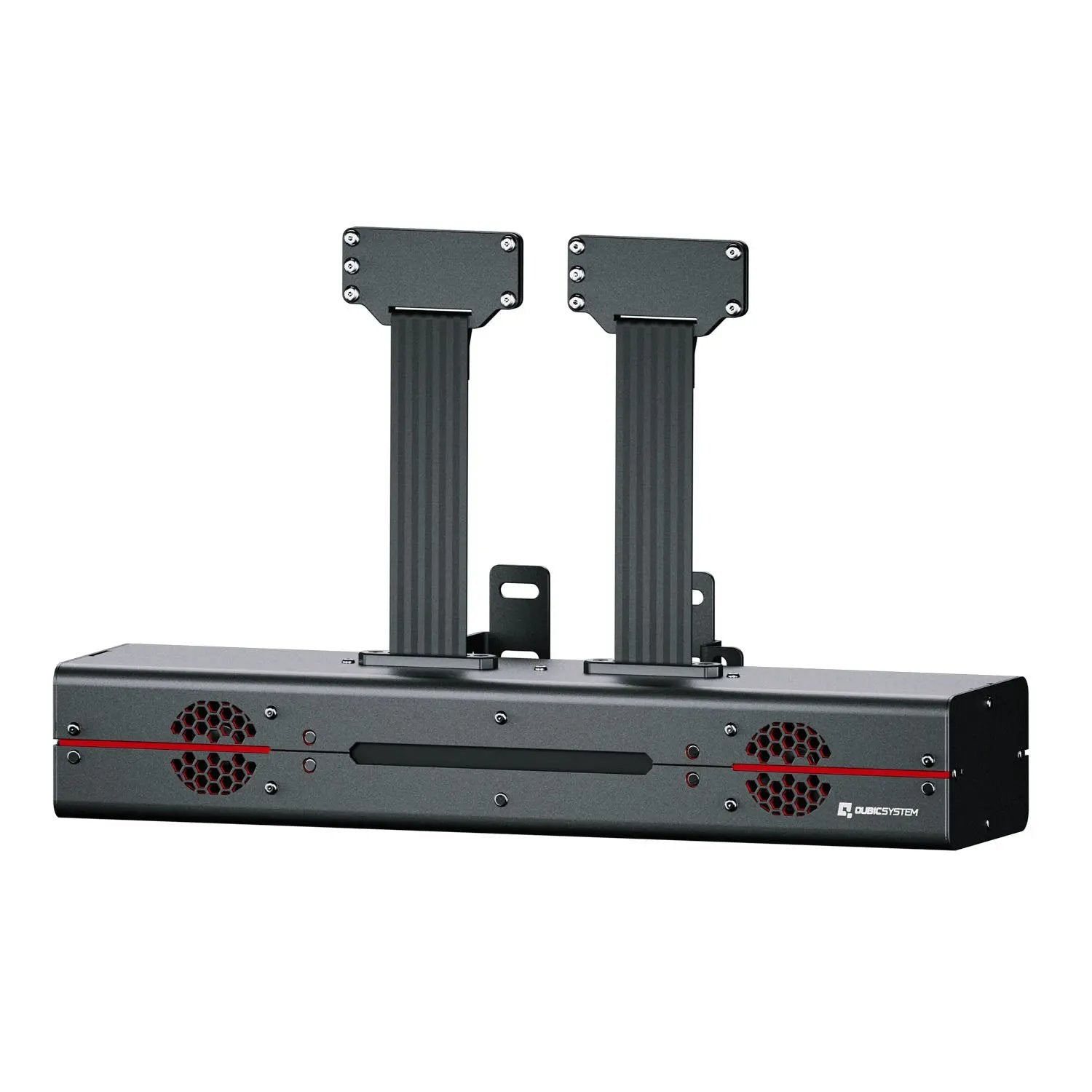

Qubic System - QS-BT1

Qubic system - QS-BT1

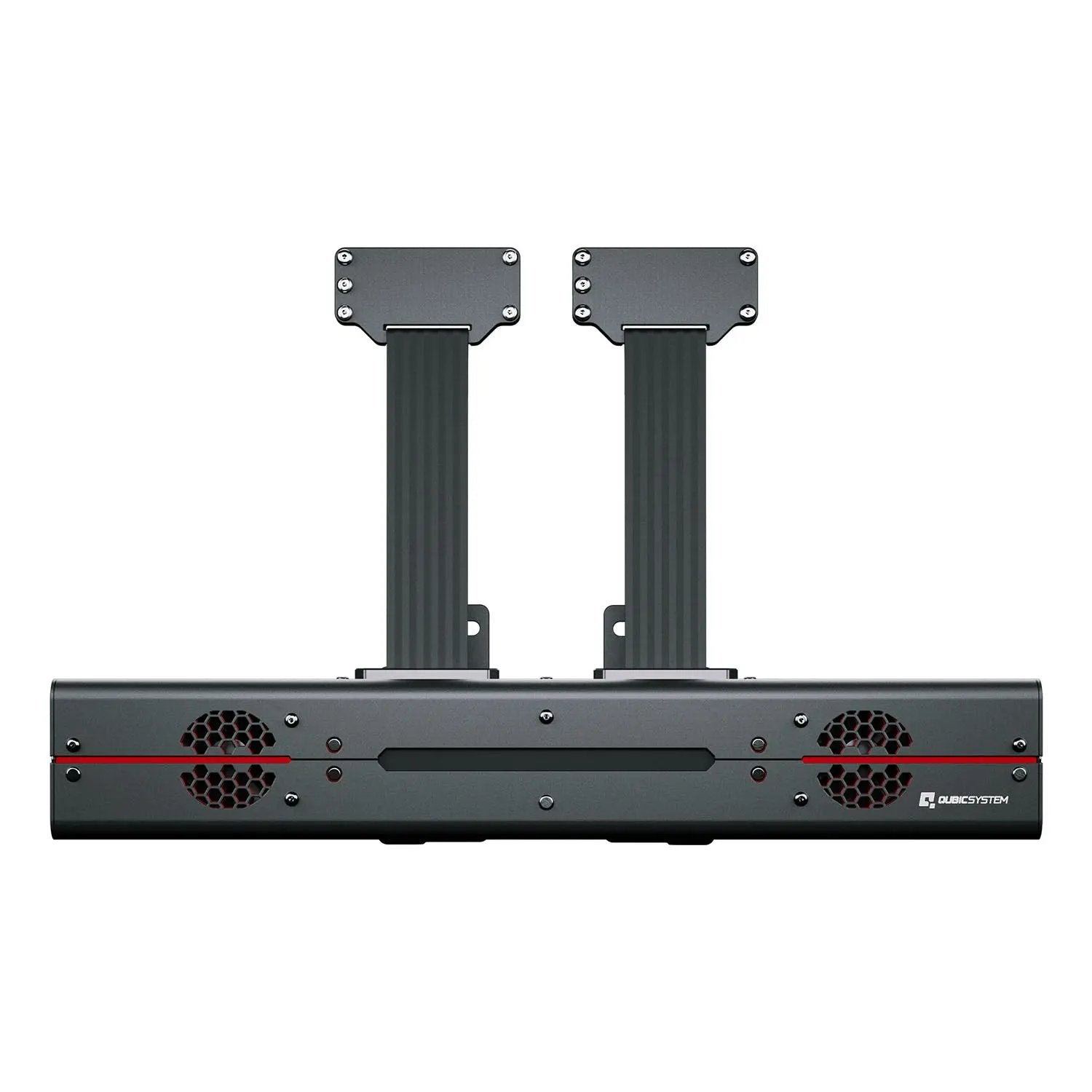

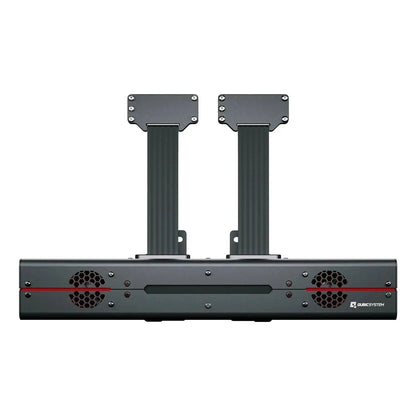

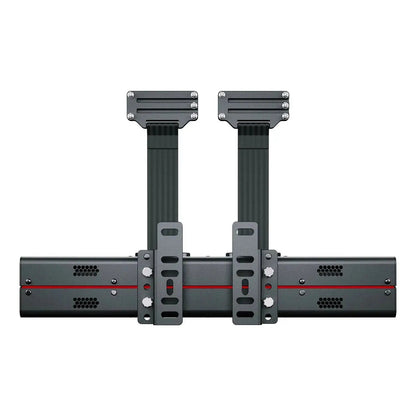

Experience the pinnacle of simulation technology with the Qubic System - QS-BT1, a revolutionary multi-function, dual channel, direct drive belt tensioner. Built on the advanced technology of the acclaimed QS-220, the QS-BT1 takes your sim racing immersion to new heights, surpassing any other device in its class and price range.

Unparalleled simulation realism

The QS-BT1 enhances your driving experience by accurately simulating:

• Braking dynamics: Experience the complex details of car braking like never before.
• Lateral acceleration: Feel the forces as you drive through bends and twists.
• High-speed cornering: Enjoy the thrill of racing with realistic feedback.
• Locky wheels and loss of traction: Learn the limits of your vehicle with tactile feedback.
• Engine vibrations: Feel the heartbeat of the engine and improve the realism of your driving simulation.

Advanced technology for improved control

Thanks to dual-channel technology, the QS-BT1:

• Precise steering simulation: Experience dynamic responses as you corner.
• Realistic shifting: Feel the transition between gears thanks to the sensitive seat belts.
• Vibration effects: Customized vibrations that mimic changing road conditions.

Compatibility and versatility

The QS-BT1 is designed to integrate seamlessly with:

• All motion platforms are controlled by Motion Systems technology.
• OpenSource DIY WindSim for an immersive driving experience.
• Flight simulators that provide a realistic representation of the G-forces during maneuvers.

Safety and comfort

Safety comes first with the QS-BT1, which includes:

• Suitable for professional racing harnesses for improved safety and durability.
• Carefully balanced pulling force for safe yet realistic sensations.
• Self-testing Motion-Lock system for extra safety during use.

Silence meets performance

The QS-BT1 is designed for quiet operation, so you can enjoy long endurance races without disturbing others. The performance ensures that you can fully concentrate on your driving.

More than racing

The QS-BT1 is not only suitable for racing enthusiasts, but also offers you the opportunity to experience flight simulations with:

• Can simulate positive and negative G-forces.
• Realistic feedback for pilot maneuvers, increasing the thrill of flying.
• Immersive sensations of gunfire, rocket launches and more.


Not included:

• Seat belts
• Cockpit
• Bucket seat
• Motion-Lock remote switch (sold separately)
• Dedicated adapter for other cockpits (sold separately)

GENERAL SPECIFICATION OF QS-BT1

• Power Source: 4A/115VAC, 2A/230VAC
• Rated Power: 321 W
• Inrush Current: 20A/115VAC, 40A/230VAC
• Power plug standard EU 2 pin
• Protection Class: 1
• Interface: USB

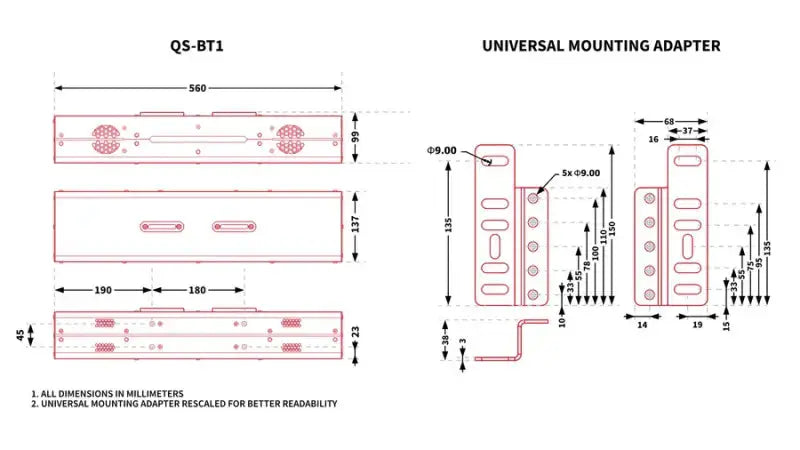

• Dimensions: 561 x 99 x 138 mm/22.13 x 3.90 x 5.43 in
• Device Weight: 12 kg/26.46 lbs
• Power Supply Weight: 2.8 kg/6.17 lbs
• Number of Independent Channels: 2
• Pulling Force: 20.5 kg/45 lbs/200 N per channel
• Storage Temperatures: +4°C to +45°C
• Full Performance Temperatures: +5°C to +35°C
• Computer Compatibility: Windows PC
• Supported Effects: Depends on Specific Game
• Multifunctional RGB
• Maximum Length of USB Cable: 3m
• Maximum Length of Motion-Lock Cable: 3m
• Motion Platforms Compatibility: QS-220, QS-210, PS, HS [1]
• [1] For seat movers application, QS-BT1 can be installed only to the motion platform’s top frame, close to pivot point and it will reduce allowed user weight.

Conclusion

With the Qubic System - QS-BT1 you are not just a driver; you will be part of a highly immersive simulation experience that bridges the gap between reality and virtual driving. Take your simulation experience to the next level and embrace the sensations like never before.
