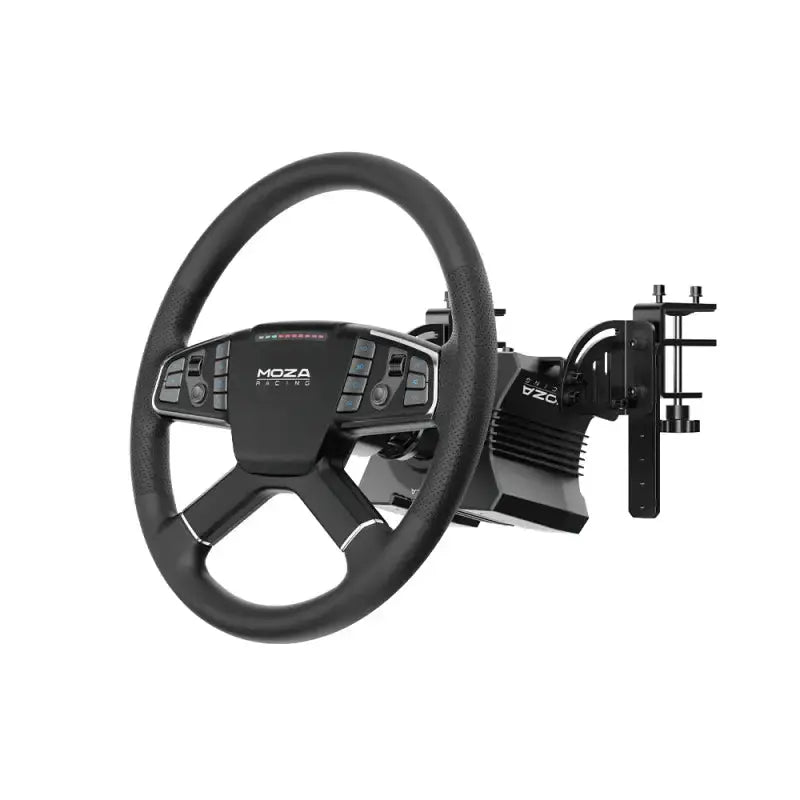

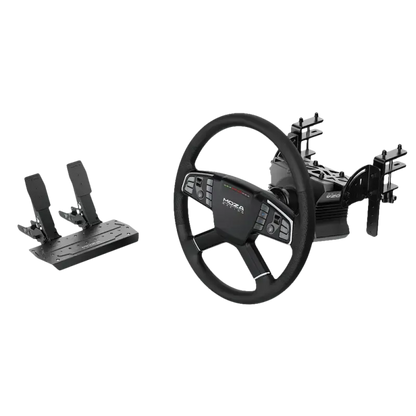

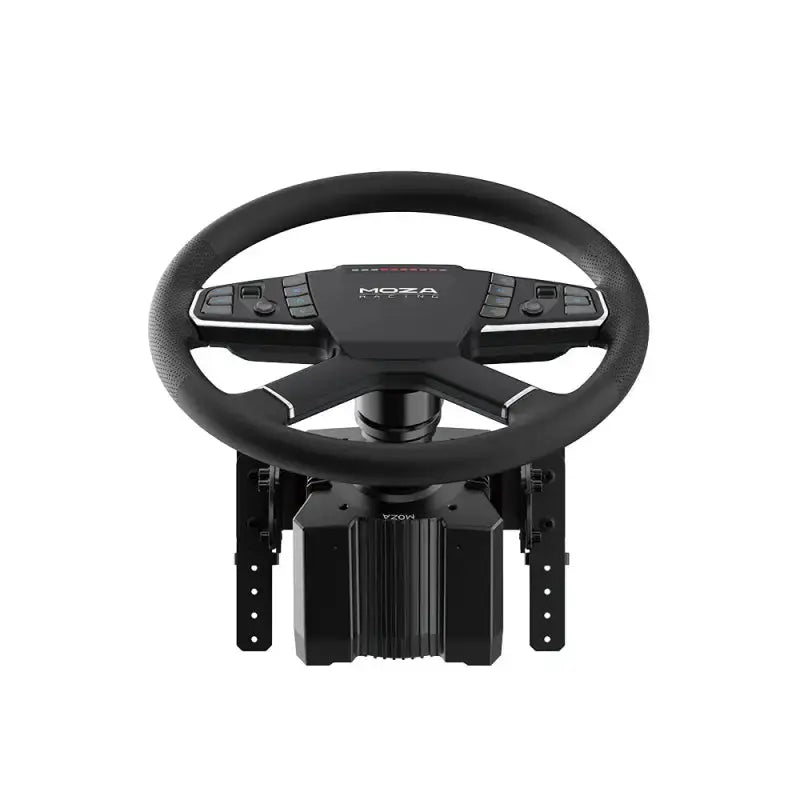

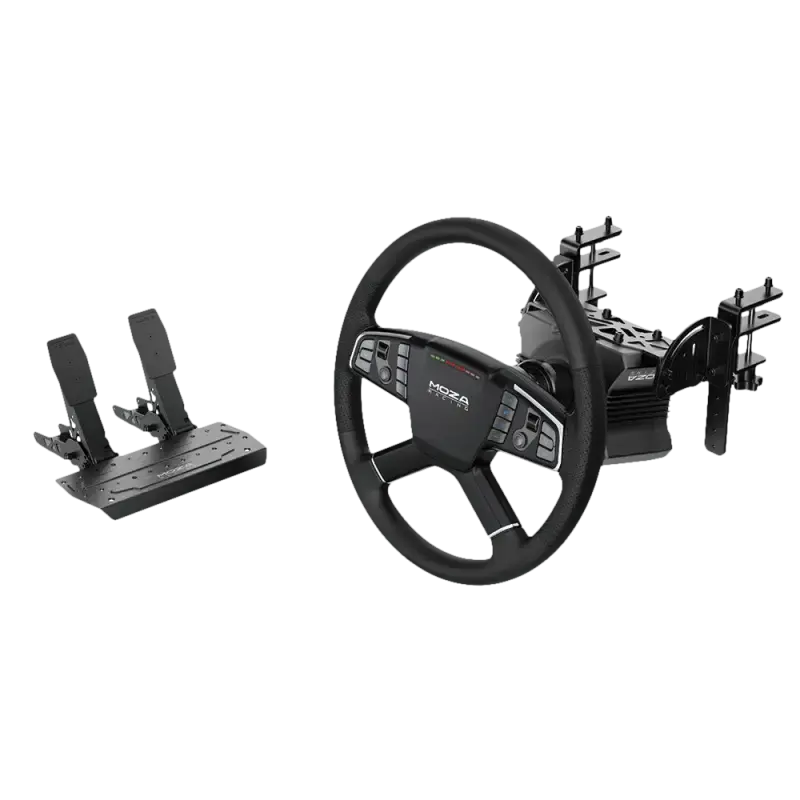

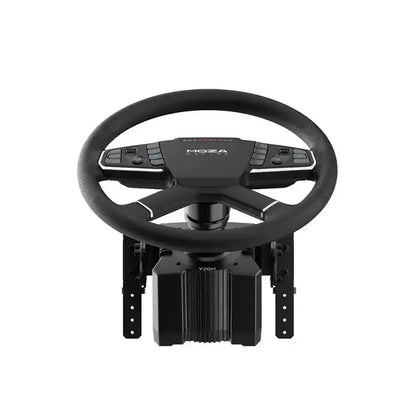

The MOZA Racing Trucking Bundle brings the main controls for a PC truck-simulator setup into one package. It combines the compact 5.5 Nm R5 direct drive wheel base with the full-size TSW Truck Wheel, a two-pedal SR-P Lite set and an adjustable truck mount. The component selection is designed around titles such as Euro Truck Simulator 2 and American Truck Simulator, where a larger steering-wheel diameter and a more upright mounting angle create a different driving position from a conventional racing setup.
Why choose this product?
- The 400 mm TSW wheel and angle-adjustable truck mount create a truck-style driving position while the R5 base supplies detailed direct drive force feedback.
- The bundle includes the wheel base, wheel, pedals and mounting clamp, reducing the number of core components that must be selected separately.
Bundle components
R5 direct drive wheel base
The R5 base provides up to 5.5 Nm of peak torque through a direct drive motor. Its 15-bit encoder and 1000 Hz USB refresh rate are designed to reproduce steering position and force changes with consistent response. The aviation-grade aluminium housing contains the motor and electronics, and the base supports continuous steering rotation. Connections are provided for power, data, display, pedals and wheel input. The base uses four mounting holes on the underside.

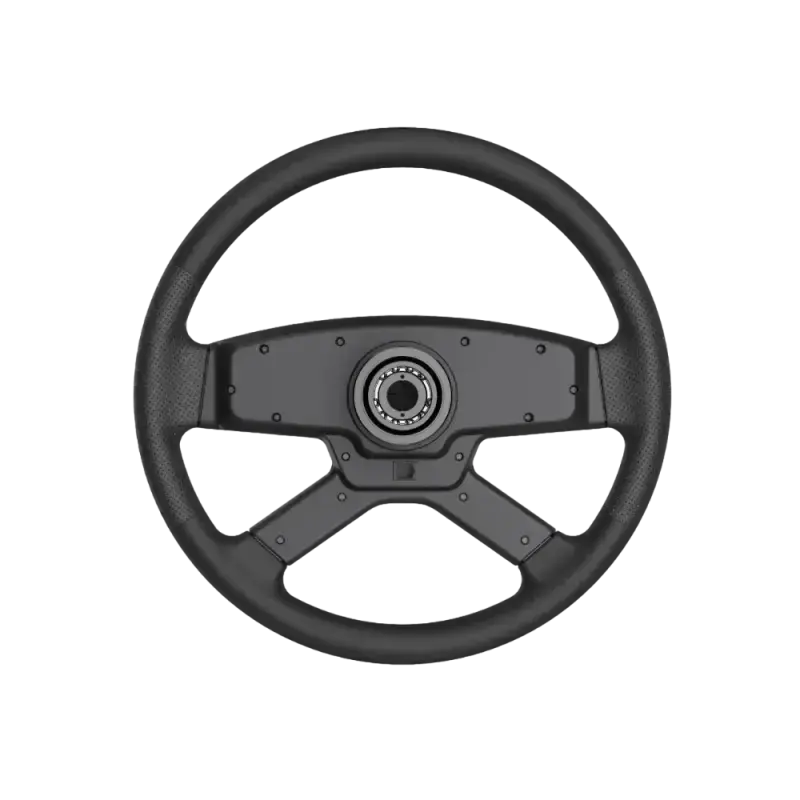

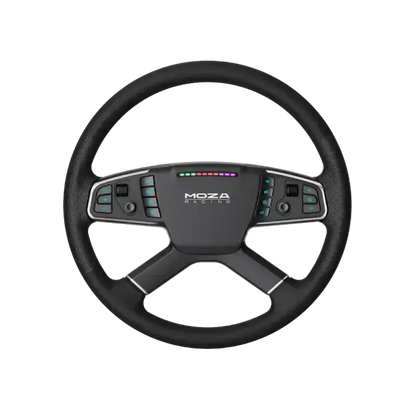

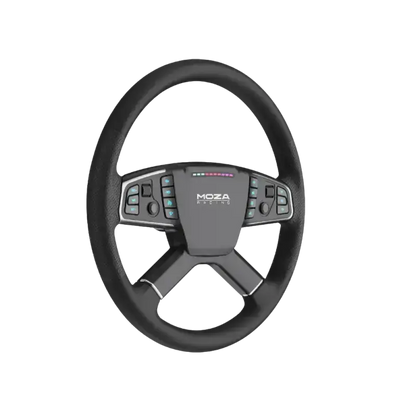

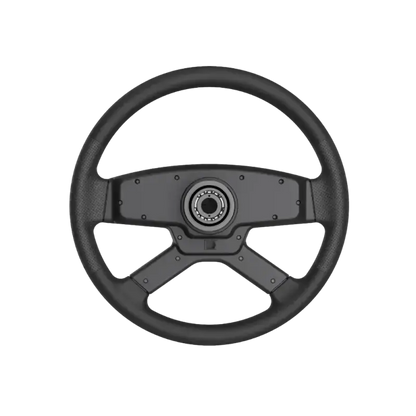

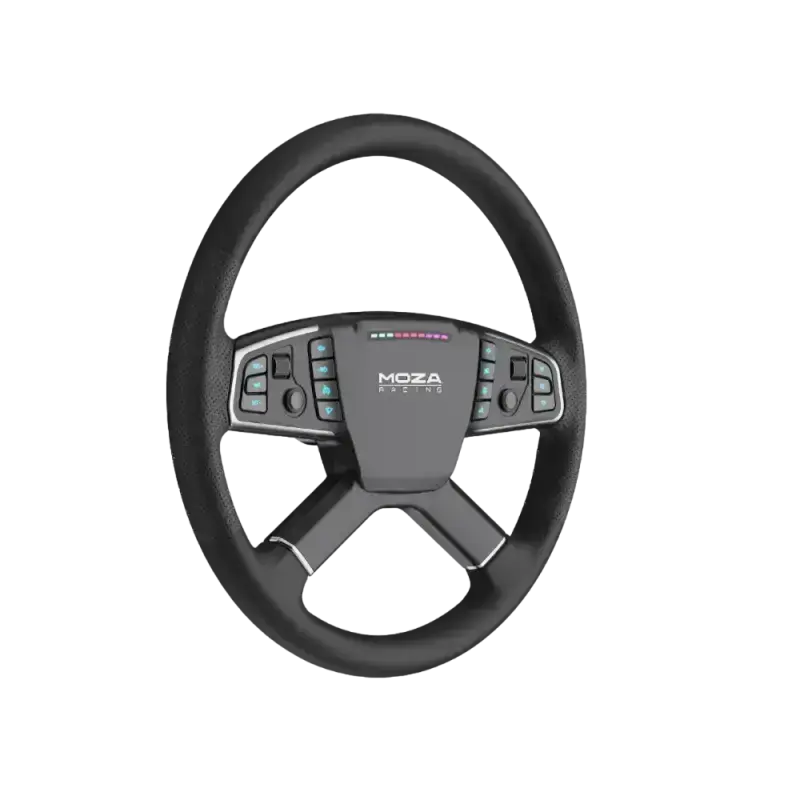

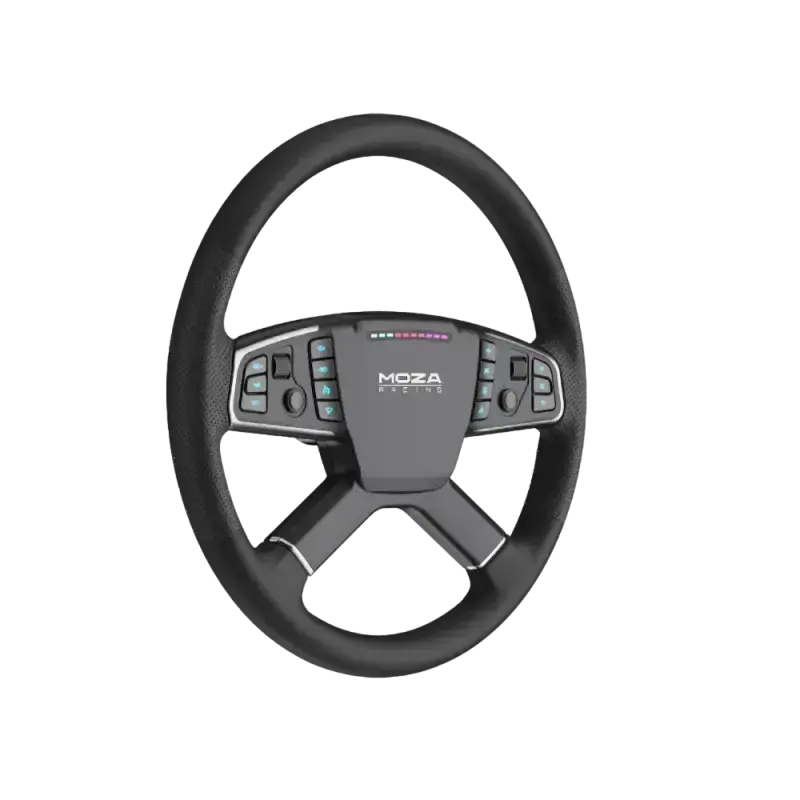

TSW Truck Wheel

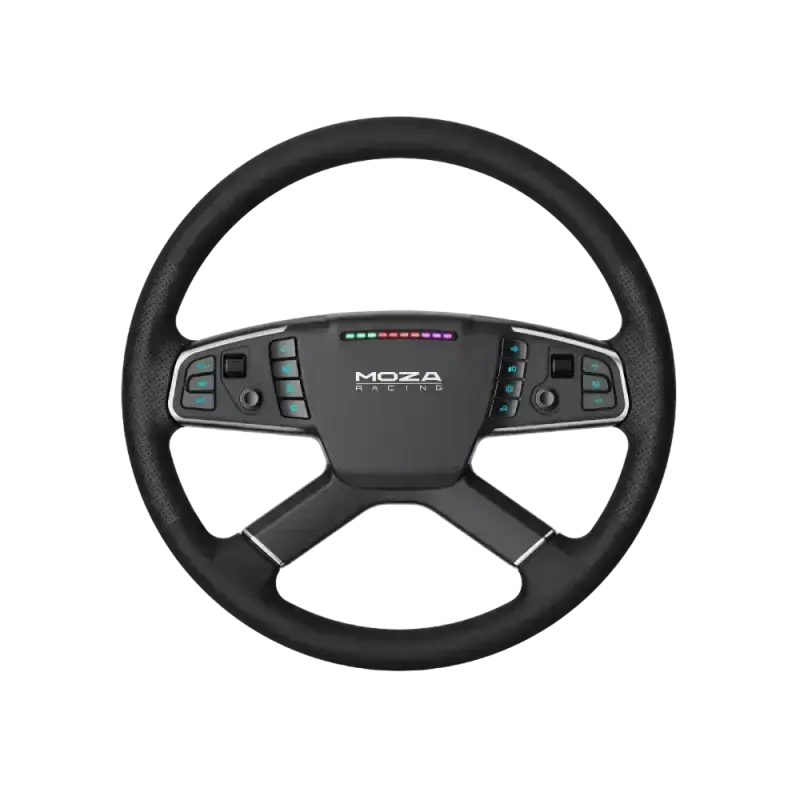

The TSW uses a 400 mm four-spoke format based on the diameter commonly found in real commercial trucks. Its internal rim frame is aerospace-grade aluminium, while the spoke and hub casing use a polymer composite. The wheel provides 14 short-travel RGB-backlit buttons, two aluminium thumbwheels, two low-profile joysticks and ten RGB telemetry LEDs. MOZA's all-aluminium quick release connects the wheel to the included R5 base. Communication supports both wireless and wired modes within the MOZA ecosystem.
SR-P Lite pedal set
The included SR-P Lite set contains accelerator and brake pedals; a clutch pedal is not included. The pedal structure and plates are made from high-strength steel, with Hall sensors used to measure pedal travel. Pedal spacing and face-plate height can be adjusted for the driver's position. MOZA Pit House supports input calibration, output-curve adjustment and input reversal. An optional SR-P Lite clutch and brake performance kit can expand the set, but both are separate products.

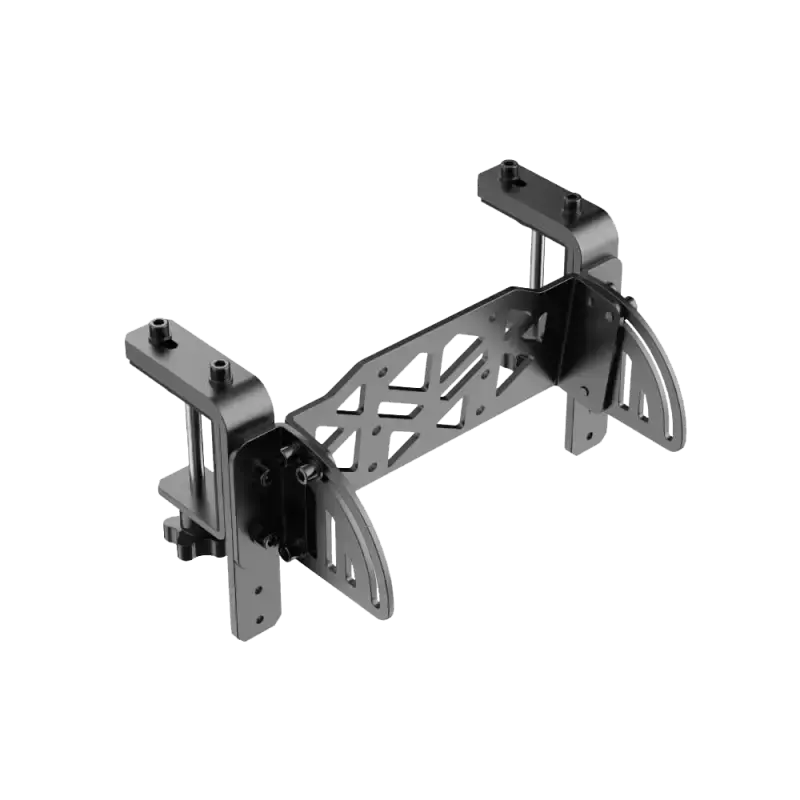

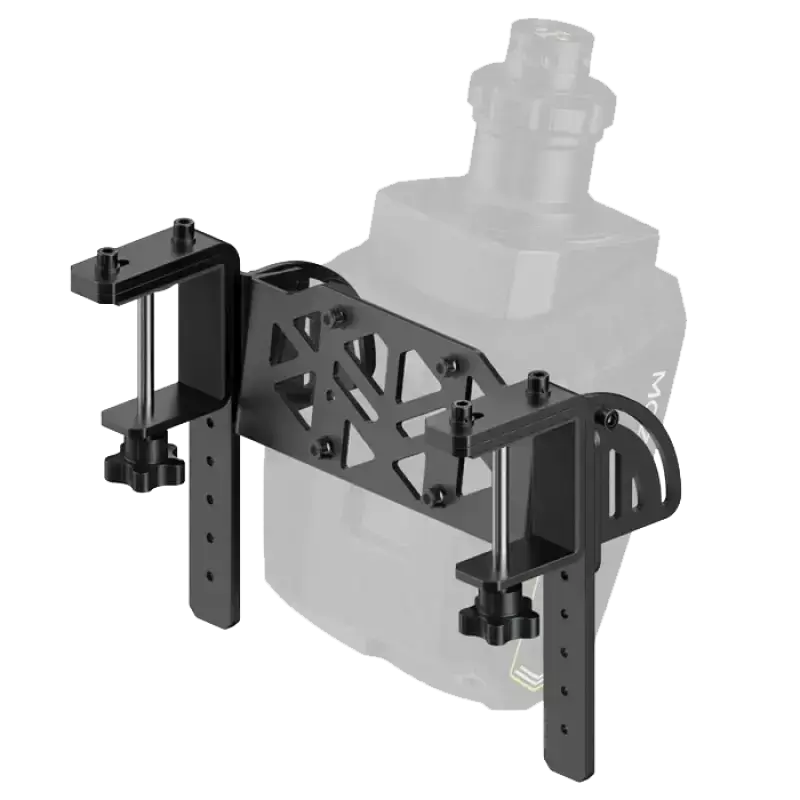

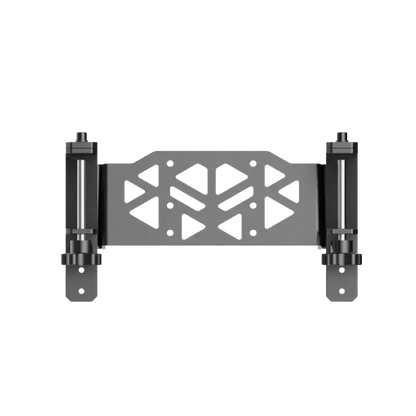

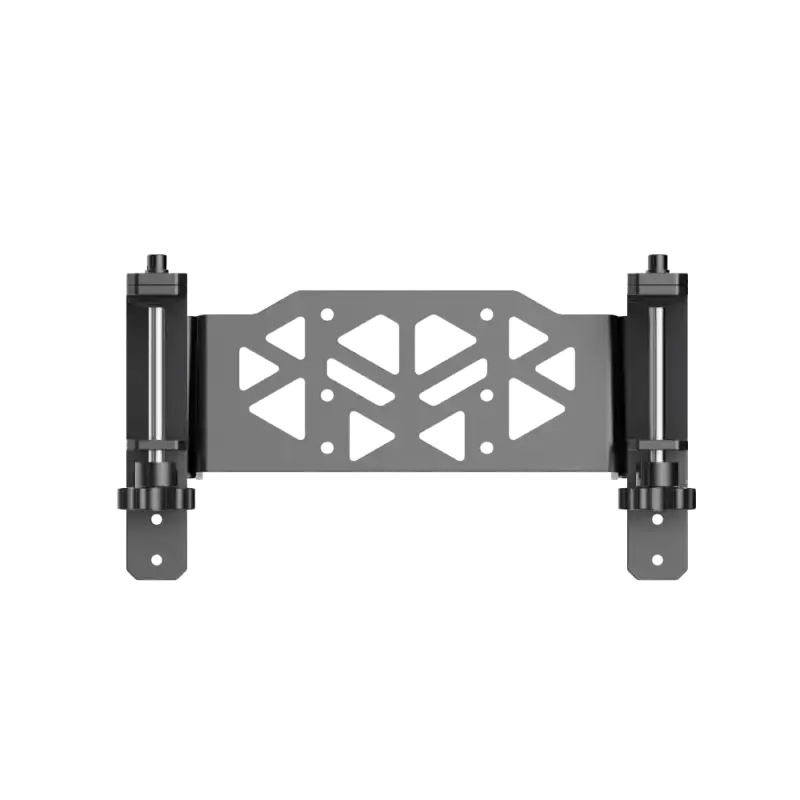

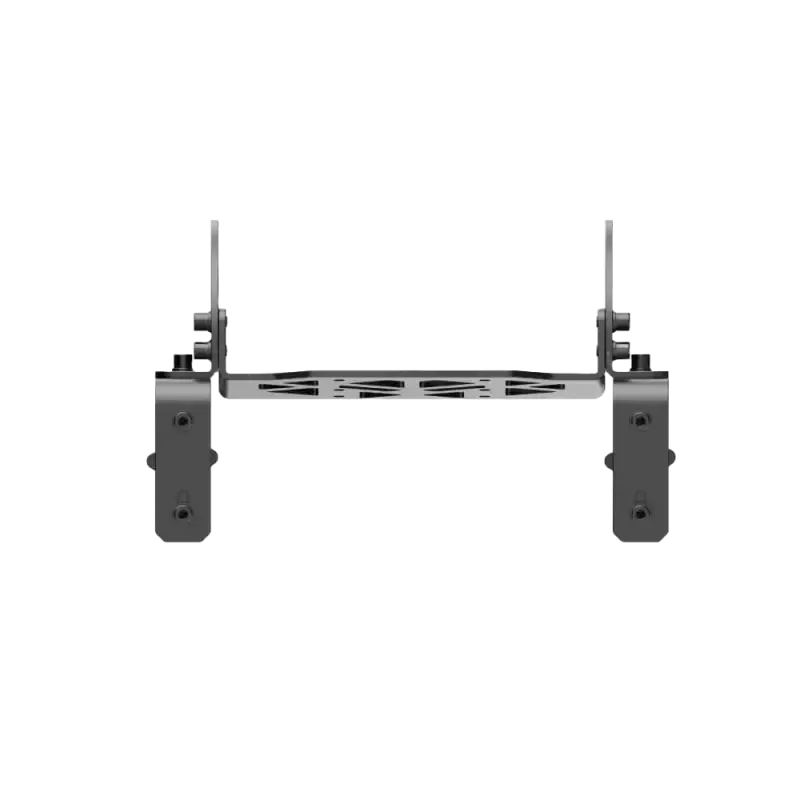

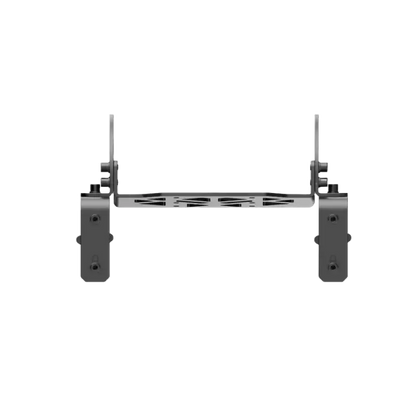

Truck mount and included hardware

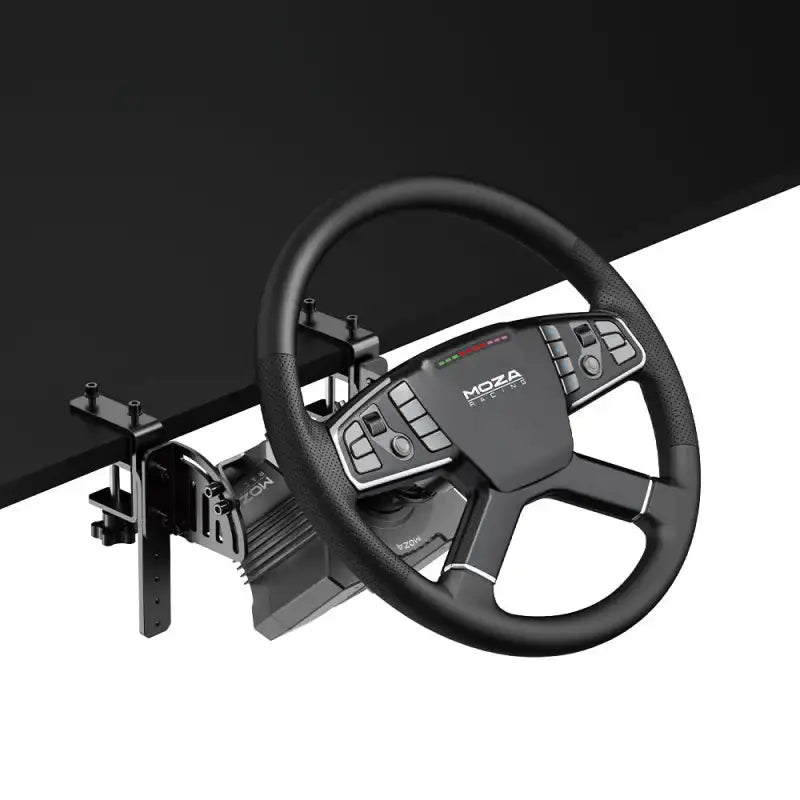

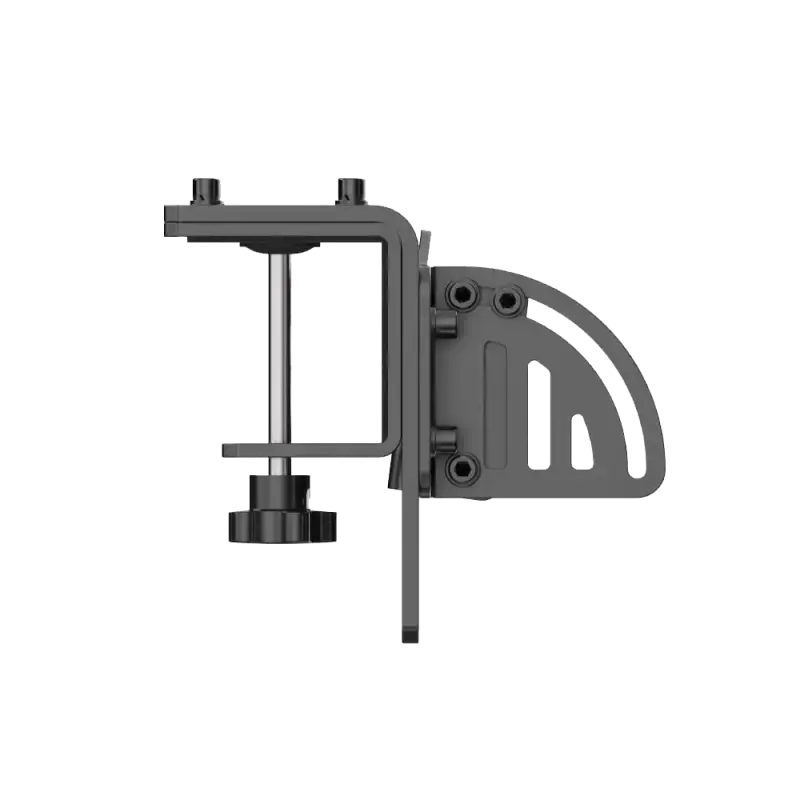

The dedicated mount is made from 4 to 6 mm high-strength steel and allows the steering angle to be adjusted from 0 to 75 degrees. It can clamp to desktops from 3 to 70 mm thick or be fixed to an aluminium-profile rig. This lets the wheel sit at a flatter, more truck-like angle than a standard desk clamp. The package also includes the base power adapter, power cord, USB cable, manual, warranty card and MOZA stickers.
Software and configuration
MOZA Pit House on Windows PC is used to test controls, calibrate the wheel and pedals, select steering rotation, adjust force feedback and pedal output, configure button and joystick modes, and customise shift-light colours and brightness. Online firmware updates are supported. Available telemetry and control functions remain game-dependent, so the game should be checked for the specific inputs and displays you plan to use.
Upgrade options
The two-pedal set can be expanded with the optional SR-P Lite clutch for manual truck configurations, and the optional brake performance kit changes the brake feel. The TSW can also be used with a third-party wheel base through MOZA Universal HUB and Third-Party Wheel Base Mount, which is required for that use and is not included. These accessories are not included in the bundle.
Compatibility
Platform: PC.
Connection and ecosystem: the included components connect within the MOZA ecosystem and are configured through MOZA Pit House. The TSW is compatible with MOZA bases; third-party-base use requires this separate hub kit.
Requirements: a Windows PC, AC power and a suitable desk or aluminium-profile mounting position. Euro Truck Simulator 2 and American Truck Simulator are specifically listed by MOZA. Console support is not listed for this bundle.
Specifications
What's in the box?
- MOZA R5 direct drive wheel base
- MOZA TSW Truck Wheel
- MOZA SR-P Lite pedals without clutch
- Clamp for Truck Wheel
- Power adapter and power cord
- USB cable
- User manual
- Warranty card
- MOZA stickers
Frequently asked questions
Which platform is supported by the MOZA Trucking Bundle?
MOZA lists the bundle for PC. Console support is not listed for this package.
Is a clutch pedal included?
No. The bundle includes accelerator and brake pedals. The matching SR-P Lite clutch is an optional separate upgrade.
Can the truck wheel be mounted to a desk?
Yes. The included truck mount supports desktops from 3 to 70 mm thick and can be adjusted between 0 and 75 degrees.
Which software is required?
MOZA Pit House on Windows PC is used for calibration, force feedback, pedal curves, controls, lighting and firmware updates.
Can I use the TSW wheel on a third-party wheel base?
MOZA lists third-party-base use through this separate hub kit. The hub is required for that setup and is not included.
